80/105 Dropped and Clocked Sway Bar Brackets

If your Landcruiser is running a big lift or more so, some big travel shocks, then you need help to keep that much travel under control! Now don't let this next sentence scare you, but believe it or not, a rear sway in these vehicles is a good thing in all situations! Especially offroad!
If you've got the big movement sliding stuff, then unfortunately the factory rear sway bar set up is not going to cut it. So when you read/hear people say "sway bars limit your flex", if your talking about a complete factory set up, then yeah, they will! But like modifying anything on a car, its just because more stuff needs attention. If you want the best option with the factory sway bar, then our extended sway bar links are the go! But we also understand that the fun tokens are always the first limiting factor of upgrades.
So we've designed these Dropped and Clocked sway bar brackets as a cheaper alternative to get your sway bar working properly and helping tame the big travel your chasing without the issue of the tiny short factory being restrictive.
These brackets are designed to be bolted onto the side of the chassis rail for the rear sway bar. These brackets are slightly thicker then other ones on the market, as well as have a full 90degree bend on either side. This helps keep the bracket as stout as possible and avoid bending. But the extra part we've done is clocked the mounting locations which moves the mounting location of the factory link backwards a tad. This enables the link to still stay within a workable angle through cycle, helping you actually obtain big flex without putting excessive strain on the link components.
Each mounting location moves the sway bar link in different increments, the lower you mount the bracket, the more it moves the location backwards. The highest mounting location is also dropping the sway bar location 2".
Initial tests are these brackets will support 14" stroke shocks without limitation of travel.
Better feel both on and offroad.

Kit Includes:

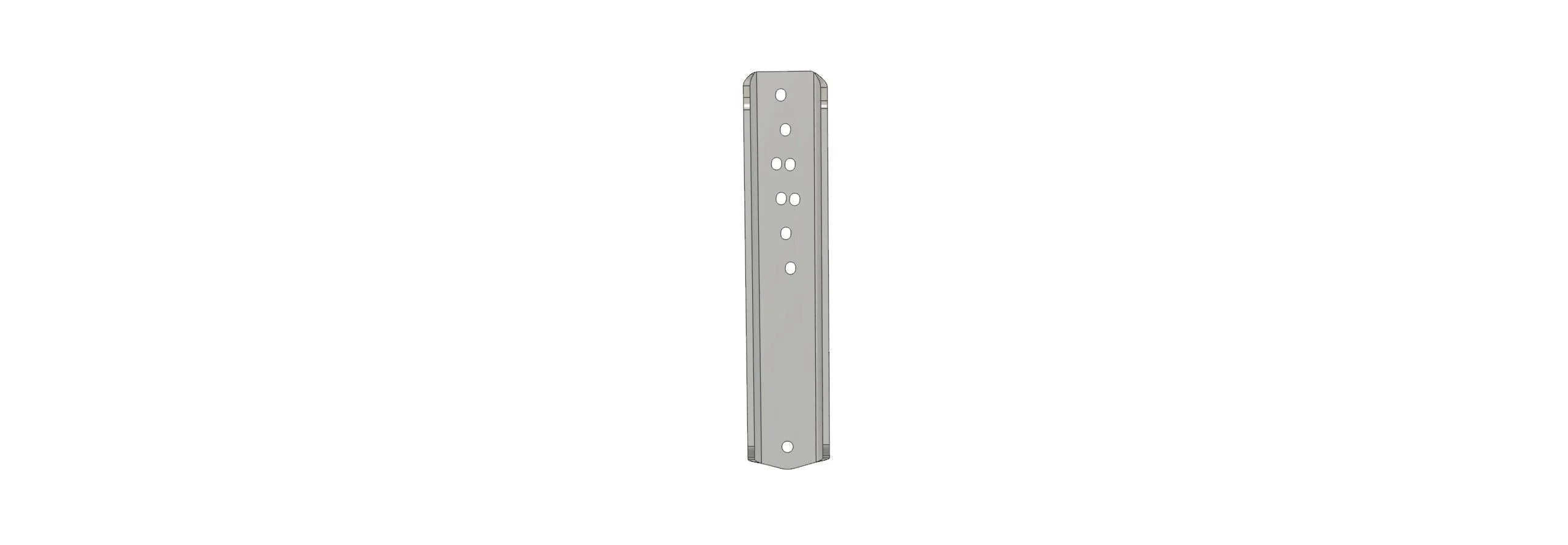

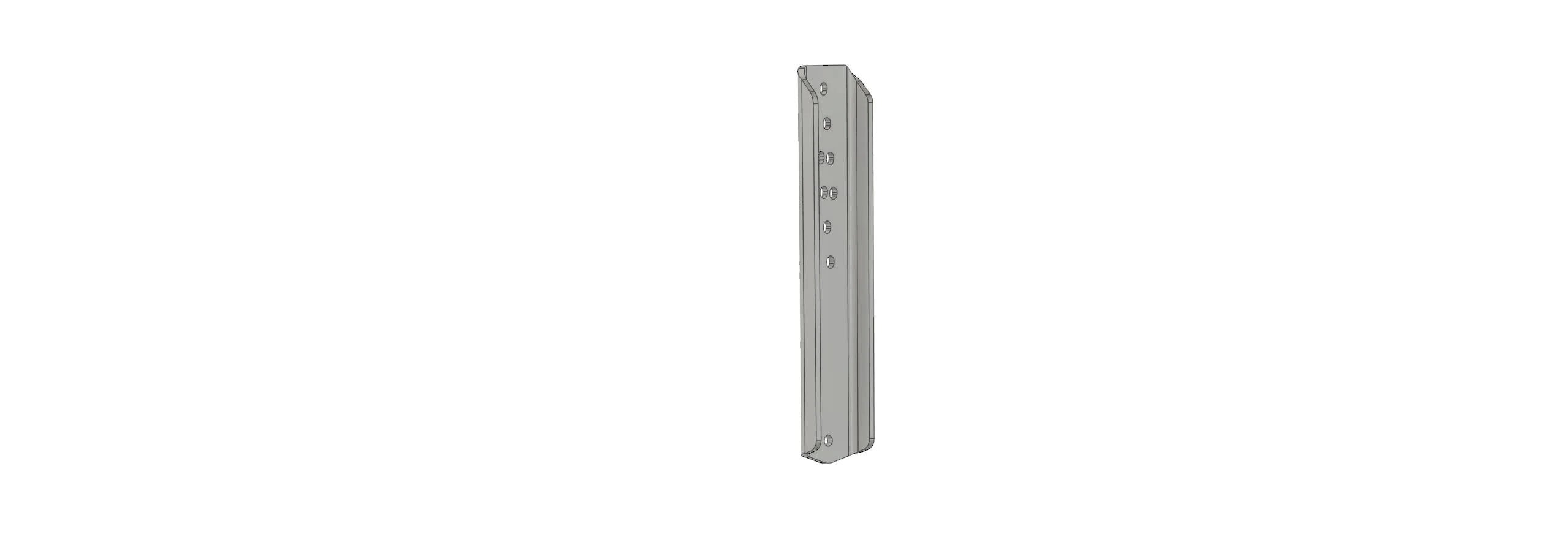

-x2 laser cut and CNC folded 6mm brackets, powder coated satin black
-New mounting hardware for chassis

These brackets will suit vehicles running side mounted brackets only. For those running brackets that mount to the bottom of the rail, we will be releasing some additional plates to convert these vehicles to side mount.
(If your happy to try slip some nuts in behind the rail, then these will still work for you just very fiddly to fit. You will also need to change the links as well.)
