Pedders Suspension Lift Kit for Ford Ranger PHEV 2.3L | 2025-Onward
This suspension lift kit is designed for Ford Ranger PHEV 2.3L models from 2025 onward. It raises the vehicle by approximately 40mm over standard height to improve ground clearance, enhance ride comfort and allow fitment of larger tyres.
Key Features
- Approx. 40mm suspension lift over standard height
- Improved ride comfort
- Increased off-road ground clearance
- Pedders TrakRyder Foam Cell shocks with sintered iron pistons and 40mm bore
- Premium grade steel suspension components

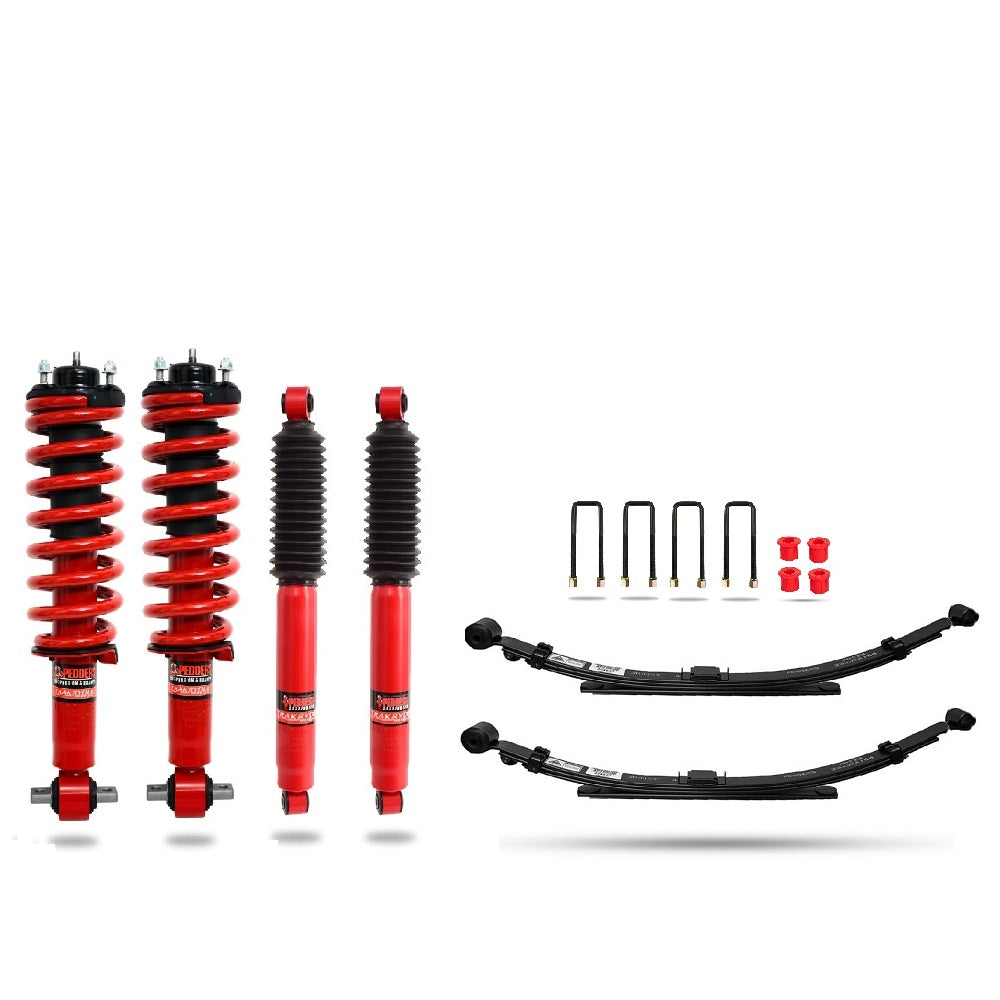

- Includes Ezifit Struts, Foam Cell shocks, rear leaf springs, bushes and U bolts
- Ezifit Struts pre-assembled for easy installation
- Backed by a 2 year / 40,000 km warranty
Product Overview
This Premium Lift Kit replaces the original suspension components with matched springs and Pedders TrakRyder Foam Cell shocks to improve vehicle stance and off-road capability while retaining comfortable ride quality. It is best suited to vehicles that do not regularly carry heavy loads.
The quoted lift height is based on a standard vehicle. Additional front equipment such as winches or bull bars may affect the final installed height and could require alternative spring rates. Vehicles used frequently for towing or heavy loads should consider heavy-duty suspension options.
Foam Cell Shock Technology
Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.
Installation & Compatibility
Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.
This kit is primarily comfort-focused and not intended for continuous heavy loads or towing applications.
Technical Specification
- Lift height: Approximately 40mm higher than standard
- Shock bore size: 40mm
- Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, rear leaf springs, bushes and U bolts
- Fitment: Ford Ranger PHEV 2.3L | 2025-Onward
- Warranty: 2 years / 40,000 km
Final ride height may vary depending on additional front equipment such as winches or bull bars fitted to the vehicle.
Why Choose Pedders
- Matched suspension components engineered to work together as a system
- Proven Foam Cell shock technology for consistent damping performance
- Ezifit Struts simplify installation and replace worn factory components
- Backed by a 2 year / 40,000 km warranty
